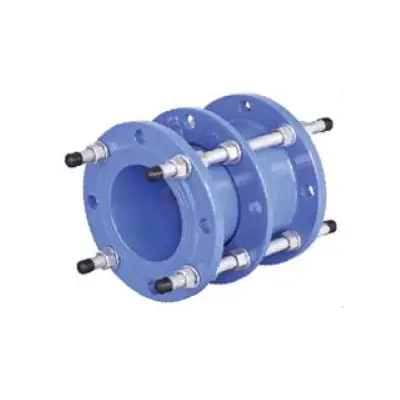

Demontaż stawu z 25% batonami (dostępny 50% paska krawata)
DnTymaty φDXLengthKołnierzNumerpaska do krawataAB(A-25)C(A+25)DWaga (kg.)DN50M16 × 330PN10 / 1641801552051858.3DN65M16 × 330PN10 / 1641801552051859.3DN80M16 × 340PN10 / 16420017522521010.8DN100M16 × 340PN10 / 16420017522523021.1DN125M16 × 340PN10 / 16420017522528514.5DN150M2......

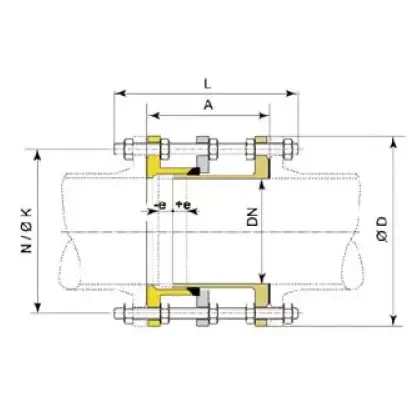

| Dn | Tymaty φDXLength | Kołnierz | Numer paska do krawata | A | B (A-25) | C (A+25) | D | Waga (kg.) |
| DN50 | M16 × 330 | PN10 / 16 | 4 | 180 | 155 | 205 | 185 | 8.3 |
| DN65 | M16 × 330 | PN10 / 16 | 4 | 180 | 155 | 205 | 185 | 9.3 |
| DN80 | M16 × 340 | PN10 / 16 | 4 | 200 | 175 | 225 | 210 | 10.8 |
| DN100 | M16 × 340 | PN10 / 16 | 4 | 200 | 175 | 225 | 230 | 21.1 |
| DN125 | M16 × 340 | PN10 / 16 | 4 | 200 | 175 | 225 | 285 | 14.5 |
| DN150 | M20 × 340 | PN10 / 16 | 4 | 200 | 175 | 225 | 285 | 21.0 |
| DN200 | M20 × 350 | PN10 | 4 | 220 | 195 | 245 | 340 | 26.9 |
| DN200 | M20 × 350 | Pn16 | 4 | 220 | 195 | 245 | 340 | 27.4 |
| DN250 | M20 × 370 | PN10 | 4 | 230 | 205 | 255 | 406 | 33.8 |
| DN250 | M24 × 380 | Pn16 | 4 | 230 | 205 | 255 | 405 | 39.9 |
| DN300 | M20 × 390 | PN10 | 4 | 230 | 205 | 255 | 445 | 39.1 |
| DN300 | M24 × 400 | Pn16 | 4 | 230 | 205 | 255 | 460 | 46.8 |
| DN350 | M20 × 400 | PN10 | 4 | 250 | 225 | 275 | 505 | 67.7 |
| DN350 | M24 × 410 | Pn16 | 4 | 250 | 225 | 275 | 520 | 73.7 |
| DN400 | M24 × 420 | PN10 | 4 | 250 | 225 | 275 | 565 | 80.3 |
| DN400 | M27 × 430 | Pn16 | 4 | 250 | 225 | 275 | 580 | 87.5 |
| DN450 | M24 × 435 | PN10 | 5 | 270 | 245 | 295 | 615 | 89.7 |
| DN450 | M27 × 450 | Pn16 | 5 | 270 | 245 | 295 | 640 | 102.0 |
| DN500 | M24 × 440 | PN10 | 5 | 280 | 255 | 305 | 670 | 100.0 |
| DN500 | M30 × 460 | Pn16 | 5 | 280 | 255 | 305 | 715 | 123.0 |
| DN600 | M27 × 460 | PN10 | 5 | 300 | 275 | 325 | 780 | 124.0 |
| DN600 | M33 × 500 | Pn16 | 5 | 300 | 275 | 325 | 840 | 159.0 |
| DN700 | M27 × 480 | PN10 | 6 | 300 | 275 | 325 | 895 | 151.0 |
| DN700 | M33 × 500 | Pn16 | 6 | 300 | 275 | 325 | 910 | 167.0 |
| DN800 | M30 × 500 | PN10 | 6 | 320 | 295 | 345 | 1015 | 184.0 |
| DN800 | M36 × 530 | Pn16 | 6 | 320 | 295 | 345 | 1025 | 199.0 |
| DN900 | M30 × 300 | PN10 | 7 | 320 | 295 | 345 | 1115 | 205.0 |
| DN900 | M36 × 530 | Pn16 | 7 | 320 | 295 | 345 | 1125 | 223.0 |
| DN1000 | M33 × 545 | PN10 | 7 | 340 | 315 | 365 | 1230 | 271.0 |
| DN1000 | M39 × 570 | Pn16 | 7 | 340 | 315 | 365 | 1255 | 300.0 |
| DN1100 | M33 × 545 | PN10 | 8 | 350 | 325 | 375 | 1340 | 371.0 |
| DN1100 | M39 × 570 | Pn16 | 8 | 350 | 325 | 375 | 1355 | 440.0 |
| DN1200 | M36 × 580 | PN10 | 8 | 360 | 335 | 385 | 1455 | 448.0 |
| DN1200 | M45 × 620 | Pn16 | 8 | 360 | 335 | 385 | 1485 | 508.0 |
| DN1300 | M39 × 600 | PN10 | 8 | 360 | 335 | 385 | 1575 | 500.0 |
| DN1300 | M45 × 650 | Pn16 | 8 | 360 | 335 | 385 | 1585 | 558.0 |
| DN1400 | M39 × 650 | PN10 | 9 | 380 | 355 | 385 | 1675 | 547.0 |
| DN1400 | M45 × 680 | Pn16 | 9 | 380 | 355 | 385 | 1685 | 602.0 |
| DN1500 | M39 × 650 | PN10 | 9 | 400 | 375 | 425 | 1785 | 748.0 |
| DN1500 | M52 × 680 | Pn16 | 9 | 400 | 375 | 425 | 1820 | 858.0 |
| DN1600 | M45 × 700 | PN10 | 10 | 420 | 395 | 445 | 1915 | 947.0 |
| DN1600 | M52 × 750 | Pn16 | 10 | 420 | 395 | 445 | 1930 | 1111.0 |
| DN1800 | M45 × 700 | PN10 | 11 | 440 | 415 | 465 | 2115 | 1176.0 |
| DN1800 | M52 × 750 | Pn16 | 11 | 440 | 415 | 465 | 2130 | 1363.0 |
| DN2000 | M45 × 700 | PN10 | 12 | 460 | 435 | 485 | 2325 | 1400.0 |
| DN2000 | M56 × 750 | Pn16 | 12 | 460 | 435 | 485 | 2345 | 1700.0 |
